How Do Jaw Crushers Break Quarry Rock?

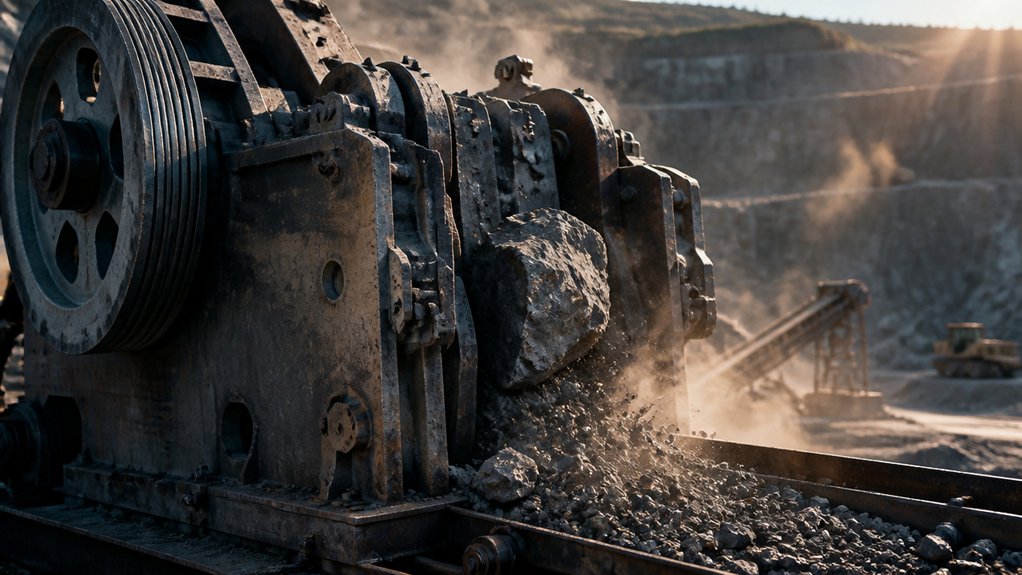

A jaw crusher breaks quarry rock by squeezing it between two steel plates: one fixed and one that moves back and forth. You feed rock into the top opening, or feed gape, where gravity draws it into the crushing chamber.
An eccentric shaft drives the moving jaw towards the fixed jaw, compressing the rock until it fractures. As the jaw retreats, crushed pieces fall lower; repeated compression reduces them until they pass through the adjustable discharge gap.
You control output size by setting that gap, following the manufacturer’s instructions and site procedures. Check liners and jaw plates regularly: wear can affect performance, while material durability influences how components withstand repeated loading.
Monitor crusher noise, since unusual changes may signal damage. Keep guards fitted, isolate power before maintenance, and never reach into the chamber while the machine operates.
Which Quarry Materials Suit Jaw Crushers?
When you’re choosing feed for a jaw crusher, consider its hardness, abrasiveness, moisture and maximum size.
Jaw crushers suit primary crushing of competent, blocky rock such as limestone, sandstone, granite and basalt, plus recycled concrete and demolition rubble.
Match Material hardness to the crusher’s duty: tough rock can demand more power and wear parts, while highly abrasive material may shorten jaw-plate life.
Feed should be reasonably dry and free-flowing; clay or wet fines can pack the chamber and restrict throughput.
Remove oversized pieces that exceed the manufacturer’s stated feed opening, and keep tramp metal out to protect the machine.
In UK quarries, assess dust and Crusher noise near workers and neighbours.
Use guarding, isolation and suitable controls, and never clear a blockage while the crusher’s running.
What Should You Consider When Choosing a Jaw Crusher?
Match the crusher’s feed opening and capacity to your quarry’s material and required throughput.
Check that it’ll produce the output size your downstream plant needs.
Compare operating and maintenance costs, including safe access for inspections and servicing.
Feed Size and Capacity
How large is the material you need to process, and how much output do you require per hour? Check the jaw crusher’s maximum feed opening against the largest rock your excavator or blasted face will deliver. Allow for occasional oversize; don’t assume every fragment matches the average.
Your required tonnes per hour should reflect actual operating time, including loading delays and planned maintenance, rather than the headline rating alone.
Assess the feed’s consistency, hardness and material moisture, as wet or sticky rock can bridge at the opening and restrict flow. Ask the supplier to confirm capacity for your specific geology and duty, using representative feed data where possible.
Match the machine to your loader and downstream plant, and plan safe access for clearing blockages. In UK quarries, also consider crusher noise when positioning equipment near workers or boundaries.
Output Size Requirements
Choose a jaw crusher’s closed-side setting to suit the product size your downstream plant needs, not just the crusher’s maximum capacity. Check the required grading for your UK specification, whether you’re supplying sub-base, drainage stone or feed for a secondary crusher.
A tighter setting can produce smaller material, but it may reduce throughput and increase fines; confirm the balance with your plant supplier and trial data.
Your results also depend on feed characteristics: Material hardness and toughness affect breakage, while moisture and clay can influence flow and product consistency.
Consider the jaw profile and discharge opening, then verify the expected size distribution against screen apertures and downstream limits.
Inspect samples safely, using isolation procedures before entering guarded areas.
Allow for normal variation, and specify a setting that reliably meets your target without compromising plant performance.
Operating and Maintenance Costs
Although purchase price matters, assess a jaw crusher’s total cost over its expected service life. Compare fuel or electricity use, throughput, and availability against your quarry’s production targets; energy efficiency can lower running costs without compromising output.
Check the price and expected life of jaw plates, cheek plates, bearings, and other wear parts, plus their delivery times in the UK. Ask how quickly your supplier can provide technical support and replacement components, since downtime affects cost per tonne.
Review maintenance intervals, access to service points, and whether routine tasks require specialist labour. Cost reduction shouldn’t come at the expense of safety: confirm guards, isolation points, and safe access for clearing blockages and changing liners.
Use your site’s operating data to estimate whole-life costs, then compare like-for-like quotations.
How Do You Match Crusher Capacity to Feed and Output?
To match a jaw crusher’s capacity to your feed and output, assess the largest feed size, material hardness and abrasiveness, required product size, and target tonnes per hour.
Check the manufacturer’s capacity charts against your actual rock and operating conditions; quoted figures are guides, not guaranteed production.
Your upstream excavator, loader and feed arrangement must supply the crusher steadily without exceeding its rated intake.
Allow for moisture, clay and variable geology, which can reduce throughput or cause blockages.
Size the crusher to meet downstream screening and conveying capacity, avoiding bottlenecks across the plant.
Consider peak demand as well as typical shifts, and confirm power, access and maintenance requirements.
In UK quarries, efficient sizing can reduce fuel use and Environmental impact, while supporting material recycling.
Keep personnel clear of moving equipment and follow site risk assessments.
How Do You Set the Crusher for Your Target Product?
Set the jaw crusher’s closed-side setting (CSS) to control the top size of the product, then check the discharge against your specification. A tighter CSS generally produces smaller material but can increase fines and wear; a wider setting gives a coarser product. Confirm the manufacturer’s limits before adjusting, and measure the CSS using the specified method, with the crusher isolated and locked off where required.
Check jaw alignment and inspect the jaw plates for uneven wear, damage or looseness, as these can affect product shape and consistency. Replace or turn plates only as the manual permits. After each adjustment, verify the setting and sample the discharge to confirm it meets your grading requirements.
Keep the lubrication schedule current, and never reach into the crushing chamber. Record settings and results so you can repeat a proven specification safely.
How Can You Feed and Operate a Jaw Crusher Efficiently?
Feed the jaw crusher steadily and evenly to maintain throughput and reduce blockages. Keep the feed centred across the full width of the chamber, and avoid dumping large surges that can stall the jaw or overload the drive.
Remove fines before crushing where the process allows; this reduces unnecessary wear and improves capacity. Match the feeder rate to the crusher’s actual output, not its maximum rating, and check that upstream conveyors maintain a consistent supply.
Innovative feeding systems, such as variable-speed vibrating feeders, help you regulate material flow as rock conditions change. Use crusher automation to monitor load, adjust feed rate and flag abnormal operating conditions.
Review trends in power draw and throughput to identify bridging or changing feed characteristics early. Coordinate settings with your target product and downstream plant, and follow the manufacturer’s operating limits and site procedures.
How Do You Keep Jaw Crusher Operators Safe?
Before starting your jaw crusher, check guards, emergency stops, isolation points and the work area, following your site’s pre-start checklist.
You must also confirm that operators are trained and that defects are reported and resolved before the machine runs.
During operation, follow the manufacturer’s procedures and UK site rules, keeping clear of the feed opening and never reaching into a blockage.
Pre-Start Safety Checks
A safe start begins with a documented pre-use inspection, not the start button. Before each shift, complete your pre start checks in line with the manufacturer’s instructions, site risk assessment and safety protocols. Confirm guards, interlocks and emergency stops are fitted, secure and functional.
Check the crusher, feeder and discharge area for damage, loose components, blockages or material left from previous work. Inspect hydraulic hoses, cables and visible fixings for leaks, wear or defects; report faults and don’t use unsafe equipment.
Make sure warning signs are legible, access routes are clear and the work area is free of people who aren’t involved. Verify that isolation and lock-off arrangements are available for maintenance needs.
Record your findings, notify the supervisor of defects, and only release the plant for use when required checks pass.
Safe Operating Procedures
Once pre-start checks are complete, follow the site’s safe operating procedure and the crusher manufacturer’s instructions throughout the shift.
Keep guards, interlocks and emergency stops in place and functional; never bypass them. You mustn’t reach into the chamber or clear a blockage while the crusher runs. Stop, isolate and lock off the plant, then verify zero energy before removing material, following your site’s permit and isolation rules.
Maintain safe exclusion zones around the feed hopper and discharge conveyor.
Use suitable tools or approved mechanical methods to control bridging; don’t stand beneath suspended loads.
Apply Lubrication protocols only under the specified isolation conditions, using the correct products and intervals.
Guarantee operator training covers normal operation, hazards, emergency response and reporting defects.
Wear required PPE, communicate clearly, and stop work if conditions become unsafe.
How Do You Maintain Jaw Plates and Crusher Components?
To keep a jaw crusher reliable and safe, inspect the jaw plates and other wear components regularly, following the manufacturer’s maintenance schedule and isolation procedures.
Before opening guards or entering the crushing chamber, stop the plant, isolate all energy sources, lock off and prove dead.
Check plates for wear, cracks, loose fasteners and uneven profiles; measure wear against the maker’s limits. Plan jaw plate replacement before the profile compromises grip or risks damage to the jaw stock.
Use approved lifting points and equipment, and never work beneath a suspended plate.
Inspect cheek plates, toggle components, bearings, seals and drive belts for wear or damage.
Apply lubrication strategies specified by the manufacturer, using the correct grade and intervals; avoid over-greasing.
Record inspections, measurements and replacements, then refit guards before restarting under site procedures.
How Do You Troubleshoot Common Jaw Crusher Problems?
When a jaw crusher’s output, noise or operating temperature changes, stop and investigate before the fault worsens. Isolate the machine, apply your site’s lock-off procedure and verify zero energy before inspection. Never clear a blockage or reach into the crushing chamber while the crusher can start.
If throughput falls, check for bridged feed, worn jaw plates, incorrect CSS or uneven loading. Inspect jaw alignment and fasteners for movement; follow the manufacturer’s tolerances before making adjustments. Knocking or excessive vibration may indicate loose components, damaged bearings or an unbalanced flywheel.
Check bearing temperatures and listen for changes, but don’t touch hot parts.
Review lubrication schedules, oil levels and grease condition; contamination or restricted flow can cause overheating. Record symptoms and readings, then involve a competent fitter if the cause isn’t clear.
Restart only after guards are refitted and the area’s clear.
